Product Details
FEATURES:

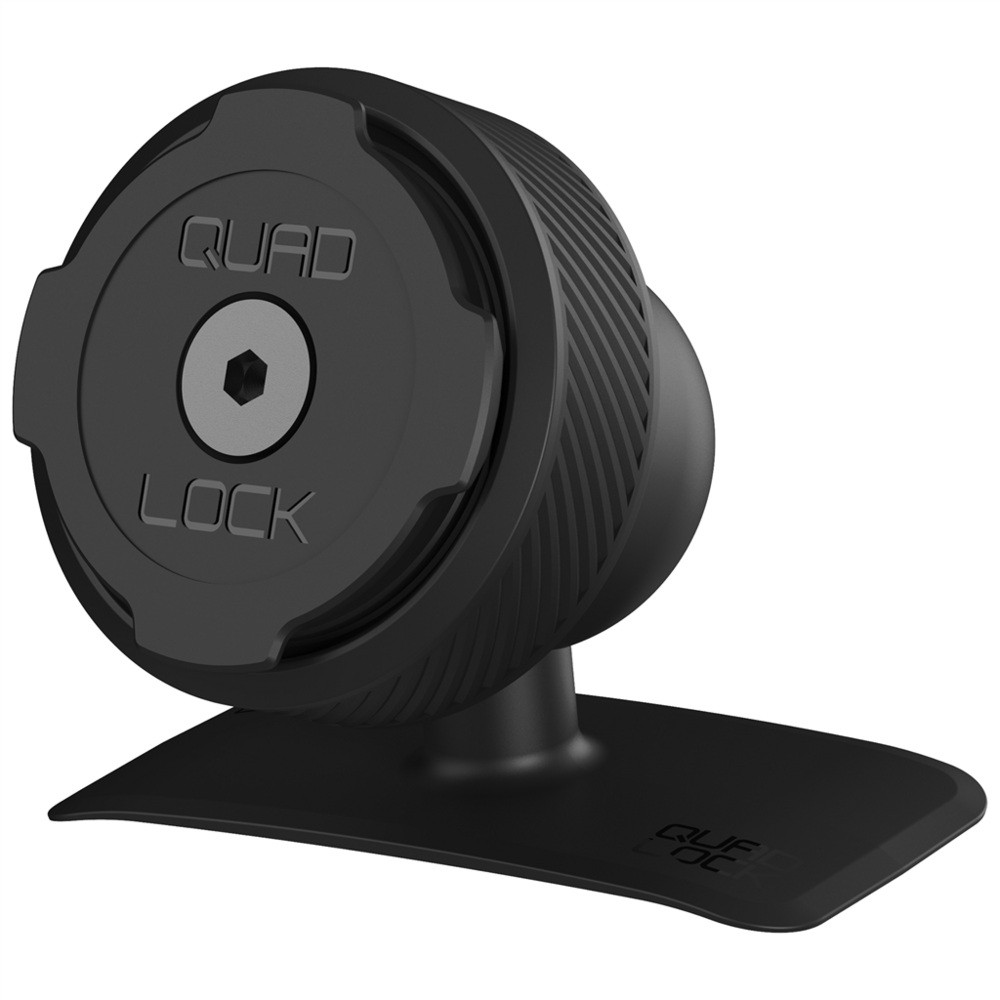

- Low Profile & Adjustable Mount for your Car Dash or Console
- Flexible 3M VHB Adhesive base which can bond to flat or slightly curved surfaces
- Portrait or Landscape Mounting for Optimal Viewing
- Single pivot ball allows 180Â ° head articulation (Z axis) and 360Â ° rotation around the base
- Rubber knurled locking nut provides better grip to tighten / loosen
- Temperature Resistance: 149Â °C (300Â °F) long term / 93Â °C (200Â °F) short term
- Upgrade to Quad Lock Wireless Charging or MAG Heads
COMPATIBLE WITH:
- Compatible with all Quad Lock cases and Universal Adaptors
- Quad Lock MAG & Wireless Charging Heads (Quad Lock MAG Standard Head, Quad Lock Wireless Charging Head, Quad Lock MAG Wireless Charging Head)
3M ADHESIVE SUITABILITY:
- Recommended Substrates:
- Smooth, non-porous, non-textured surfaces such as;
- Plastics such as PC, ABS, PVC, Nylon, Acrylic (eg. Car dash, console)
- Un-coated glass (eg. Windshield)
- Metals
- Fibreglass
Non-Recommended Substrates:
- Rubber, TPU, TPE
- Leather
- Silicone
- Soft touch coating or paint
- Low surface energy plastics such as Polypropylene (PP), Polyethylene (PE), Acetal, HDPE
Application Temperature:
- Ideal application temperature: 21Â °C (70Â °F) to 38Â °C (100Â °F)
- Not recommended application temperature: Below 10Â °C (50Â °F)
- It is not recommended for use on Motorcycles, Scooters, ATV’s or other high
- frequency engine vibration applications
PRODUCT WEIGHT (KG):
- 0.041
MATERIALS:
- BASE - GF Nylon (PA66+14GF)
- BALL OVERMOULD - TPU 80ShA
- LOCKING NUT - GF Nylon (PA66+14GF) + TPU 80ShA
- TOP CAP - GF Nylon (PA66+14GF)
- REVERSE SINGLE PIVOT DOME - 30% Glass Filled Polycarbonate
- (PC+30GF)
- REVERSE SINGLE PIVOT BASE - PC+ABS
- ADHESIVE - 3M 5611 - 1.1mm THICK
INCLUDED IN BOX:
- 1 x Quad Lock Dash/Console Car Mount with Top Cap
- 1 x Spare 3M VHB 5611, pre-cut to size Adhesive pad
- 1 x Isopropyl Alcohol prep pad
SPARE PARTS:
- Replacement Adhesive with Alcohol Prep Pad (Quad Lock ® Replacement Adhesive - Adhesive Car Mount)
SAFETY:
- Ensure the mount does not interfere with essential vehicle operation (steering, airbags, braking, etc)
- Recommend NOT to mount in a position that may obstruct driver’s view
PRODUCT WEIGHT (KG):
- 0.041
MEASUREMENTS:
- 59.5mm L x 39mm W x 45mm
